Service kits |
|
|
|
 |
Full Service Kit
Includes all parts as pictured:
- 2 x Oil Filters
- 2 x Air Filters
- 1 x Fuel Filter
- 12 x Spark Plugs
- 1 x Engine Sump Plug
- 1 x Engine Sump Plug Washer
(365: GT4 BB); (512: BB) |
365BBFSK |
£209.27 |
|
 |
Full Service Kit
Includes all parts as pictured:
- 2 x Oil Filters
- 2 x Air Filters
- 2 x Fuel Filters
- 12 x Spark Plugs
- 1 x Engine Sump Plug
- 1 x Engine Sump Plug Washer
(512: BBi) |
512BBIFSK |
£173.11 |
|
| |
|
|
|
|
| |
Cam Belt |
|
|
|
|
Timing Belt Kit (2 Valve)
Includes:
- 2 x 107833
- 2 x 105206
(512: BB, BBi) |
30816320 |
£88.98 |
|
|
Timing/Cam Belt
Supersedes: 102877
(512: BB, BBi) |
107833 |
£10.88 |
|
|
Timing Belt Tensioner Bearing with Outer Roller
Uprated Aluminium
Supersedes: 105201, 126720
(512: BB, BBi) |
105206 |
£36.95 |
|
|
Uprated Timing Belt Tensioner Bearing
Over 30% reduction in weight
Dual angular contact bearing design with single piece inner race
High temperature rated grease and seals
(512: BB, BBi) |
PT-308
 |
£65.00 |
|
 |
Timing Belt Pulley Dowel
With Threaded Centre
(512: BB, BBi) |
4146769 |
£12.30 |
|
|
Timing Belt Bearing Washer
(512: BB, BBi) |
102824 |
£7.90 |
|
| |
|
|
|
|
| |
pistons |
|
|
|
|
Standard Bore/Standard Compression Piston Set
Complete with rings, gudgeon pins, etc.
82.00mm
(512: BB, BBi) |
F1216075 |
£3895.00 |
|
 |
1st Oversize/Standard Compression Piston Set
Complete with rings, gudgeon pins, etc.
82.25mm
(512: BB, BBi) |
F1216076 |
£3985.00 |
|
|
2nd Oversize/Standard Compression Piston Set
Complete with rings, gudgeon pins, etc.
82.50mm
(512: BB, BBi) |
F1216077 |
£3385.00 |
|
|

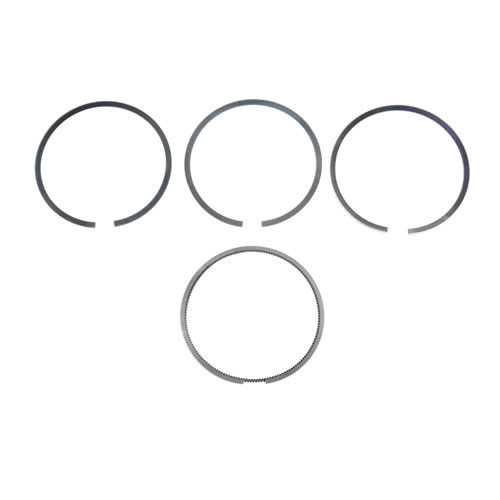

Standard Bore Piston Ring Set
Piston Ring Set for Standard Bore O.E. Pistons
(512: BB, BBi) |
108618 |
£167.67 |
|
| |
|
|
|
|
| |
Cylinder Liners |
|
|
|
|
Cylinder Liner
Made in Ductile Iron with Fully Finished Bore
82.00mm
(512: BB, BBi) |
107057 |
£294.29 |
|
| |
|
|
|
|
| |
Oil filter |
|
|
|
|
Oil Filter
Supersedes: 100325, 111782, 240778, 4170601, 41706011
(512: BB, BBi)
|
191993 |
£22.50 |
|
|
Fram Oil Filter
Supersedes: 100325, 111782, 240778, 4170601, 41706011
(512: BB, BBi)
|
100325/OE |
£23.84 |
|
|
Uprated Oil Filter
Fram HP1
Top quality racing filter
Replaces: 191993, 100325, 111782, 240778, 4170601, 41706011
(512: BB, BBi) |
HP1 |
£24.98 |
|
 |
Oil Filter Socket Tool
For use with UFI filter #191993
|
OFT-01 |
£65.00 |
|
 |
Oil Filter Union
(512: BB, BBi)
|
100327
|
£20.35 |
|
| |
|
|
|
|
| |
full engine GASKET sets |
|
|
|
 |

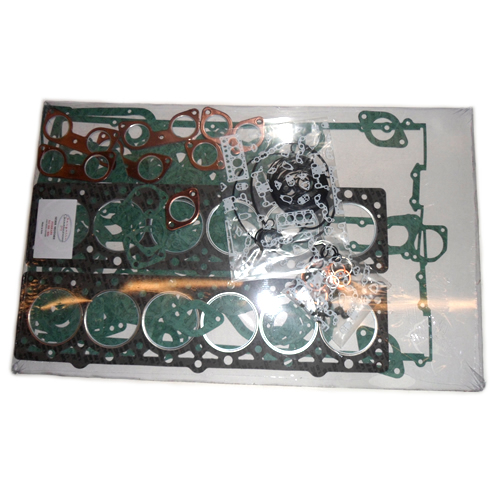

Full Engine Gasket Set
Italian Aftermarket
(512: BB, BBi) |
F1216055 |
£600.00 |
|
| |
|
|
|
|
| |
Head GaskeT |
|
|
|
 |
Head Gasket
(512: BB, BBi) |
102596 |
£350.44 |
|
 |
Head Gasket
Italian Aftermarket
(512: BB, BBi) |
102596SF |
£121.64 |
|
| |
|
|
|
|
| |
Gaskets |
|
|
|
 |

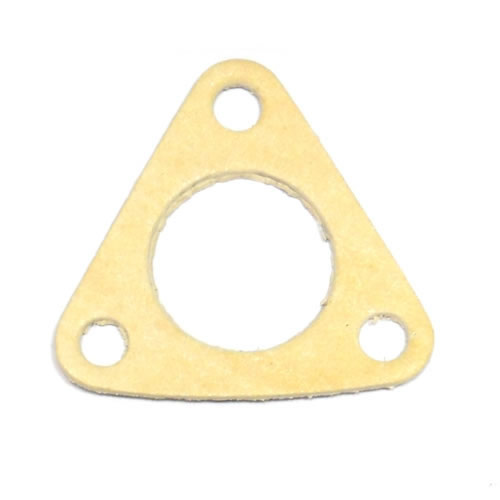

Oil Pickup Pipe Gasket
(512: BB, BBi) |
151797 |
£1.63 |
|
|
Single/Twin Distributor Gasket
Supersedes: 103815, 147642
(512: BB, BBi) |
4146863 |
£3.70 |
|
 |
Oil Filter Support Gasket
(512: BB, BBi) |
147637 |
£2.52 |
|
|
Front Cover Gasket
(512: BB, BBi) |
147679 |
£13.80 |
|
|
Oil Pipe Gasket
(512: BBi) |
150193 |
£2.21 |
|
|
Crankcase Gasket
(512: All) |
150191 |
£1.95 |
|
|

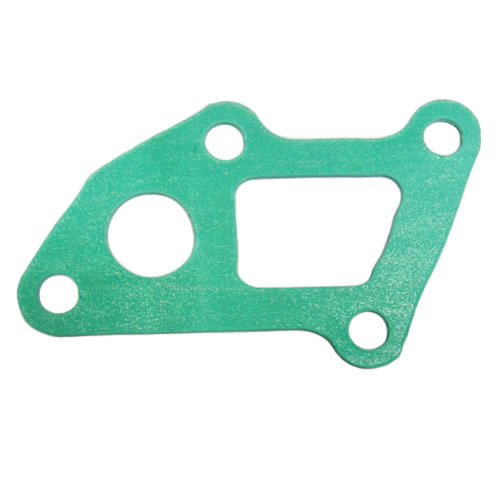

Oil Filter Support Gasket
(512: BB, BBi) |
147698 |
£3.44 |
|
| |
|
|
|
|
| |
Oil seals |
|
|
|
|
Distributor Oil Seal
(512: BB, BBi) |
108009 |
£6.95 |
|
| |
|
|
|
|
|
Front Crankshaft/Front Cover Oil Seal
Viton
Supersedes: 100056, 105231, 136525
(512: BB, BBi)
|
108224 |
£8.95 |
|
 |
Rear Crank Oil Seal
Supersedes: 100014, 104864
(512: All) |
138391 |
£22.93 |
|
| |
|
|
|
|
| |
O Rings |
|
|
|
 |
Distributor ‘O’ Ring
(512: BB, BBi) |
100015 |
£0.83 |
|
 |
Liner O ring (each)
Supersedes: 102797
(512: BB) |
110021 |
£4.43 |
|
 |
Liner O ring (each)
(512: BBi)
|
110021 |
£4.43 |
|
|
Cam Pulley O Ring
(512: BB, BBi)
|
101031 |
£2.50 |
|
 |
Oil Pump O'Ring
(512: All) |
123236 |
£2.81 |
|
|
Crankcase O Ring
(512: BB, BBi)
|
103020 |
£1.89 |
|
| |
|
|
|
|
| |
Oil Pump |
|
|
|
|
Dry-Sump Oil Pump 'O' Ring
3 required
(512: BB, BBi) |
105556 |
£1.95 |
|
|
Oil Pump O'Ring
(512: All) |
123236 |
£2.81 |
|
 |
Oil Pump O'Ring
(512: BB, BBi) |
103021 |
£1.27 |
|
 |
Dry Sump Oil Tank Support
(Original)
(512: BB, BBi) |
101495 |
|
|
 |
Oil Pump Castellated Nut
(512: BB, BBi) |
102900 |
£5.52 |
|
 |
Oil Pump Shaft
(512: BB, BBi) |
102772
|
£58.80 |
|
 |
Oil Pump Bush
(512: BB, BBi) |
102771
|
£22.55 |
|
 |
Driving Gear Oil Pump
(512: BB, BBi) |
109954 |
£280.00 |
|
 |
Oil Pump Driven Gear
(512: BB, BBi) |
109955 |
£225.00 |
|
|

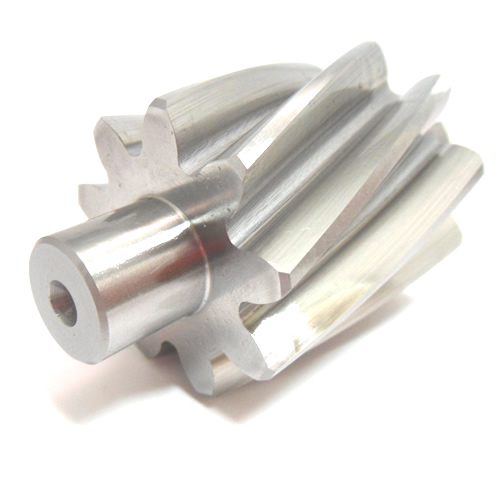

Driving Gear
(512: BB,BBi) |
116058 |
£209.00 |
|
|

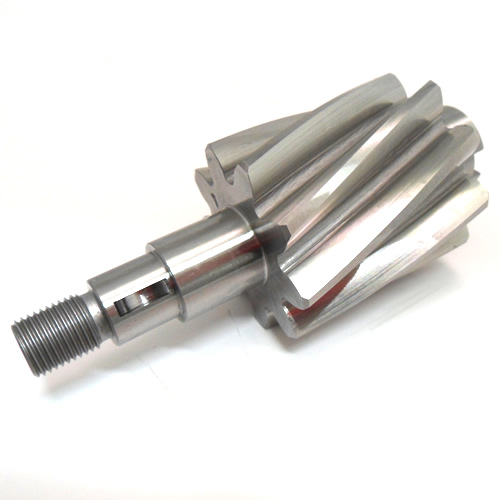

Driving Gear
(512: BB, BBi) |
116057 |
£420.00 |
|
|
Driven Gear
(512: BB, BBi) |
116056 |
£209.00 |
|
 |
Woodruff Key
(512: BB, BBi) |
10205620 |
£0.50 |
|
| |
|
|
|
|
| |
bushes |
|
|
|
|
Small End Bush std
Supersedes: 107100, 100155, 14581
(512: All) |
30816105 |
£18.61 |
|
 |
Oil Pump Bush
(512: BB, BBi) |
102770 |
£14.80 |
|
| |
|
|
|
|
| |
Oil pressure |
|
|
|
|
Oil Pressure Sender Unit
M16 Thread
Supersedes: 401421, 125340, 118003, 4169501
(512: BB) |
100343 |
£89.98 |
|
|
Oil Pressure Sender Unit
M18 Thread
Supersedes: 114927, 118000
(512: BBi) |
122592 |
£198.27 |
|
|
Oil Pressure Adjusting Shim
(512: BB, BBi) |
106238 |
£1.53 |
|
 |
Oil Tank Mounting Cap
(512: All) |
107979 |
£9.29 |
|
| |
|
|
|
|
| |
Oil Temperature Sender |
|
|
|
|
Oil Temperature Sender Unit
(512: BB, BBi) |
24618025 |
£47.72 |
|
| |
|
|
|
|
| |
Drain/Filler plugs |
|
|
|
 |
Front of Engine Block Plug
Steel
13mm long
Supersedes: 94858, 524038, 10275001, 10275040, 10305140, 10305171
(512: BB, BBi) |
10275011 |
£4.59 |
|
 |
Front of Engine Block Plug
25mm long
(512: BB, BBi) |
10275011-25
|
£31.25 |
|
 |
Long Uprated Front of Engine Block Plug
Brass
36mm long
|
10275011SF |
£29.95 |
|
|
Drop Gear Housing Filler Plug
13mm long
Supersedes: 94858, 524038, 10275001, 10275040, 10305140, 10305171
(512: All) |
10275011 |
£4.59 |
|
|
Drop Gear Housing Filler Plug
25mm long
(512: All) |
10275011-25
|
£31.25 |
|
|
Long Uprated Drop Gear Housing Filler Plug
Brass
36mm long
|
10275011SF |
£29.95 |
|
|
Gearbox Filler Plug
13mm long
Supersedes: 94858, 524038, 10275001, 10275040, 10305140, 10305171
(512: All) |
10275011 |
£4.59 |
|
|
Gearbox Filler Plug
25mm long
(512: All) |
10275011-25
|
£31.25 |
|
|
Long Uprated Gearbox Filler Plug
Brass
36mm long
|
10275011SF |
£29.95 |
|
|
Oil Tank Drain Plug
13mm long
Supersedes: 94858, 524038, 10275001, 10275040, 10305140, 10305171
(512: BB, BBi) |
10275011 |
£4.59 |
|
|
Oil Tank Drain Plug
25mm long
(512: BB, BBi) |
10275011-25
|
£31.25 |
|
|
Long Uprated Oil Tank Drain Plug
Brass
36mm long
|
10275011SF |
£29.95 |
|
 |
Engine Sump Plug
Supersedes: 83107, 101477, 9111465
(512: All) |
103974 |
£16.20 |
|
 |
Engine Sump Plug Washer
Supersedes: 10253060, 83108, 94877
(512: All) |
10257060 |
£0.21 |
|
 |
Washer
Supersedes: 10264600
(512: All) |
10264660 |
£3.71 |
|
 |
Gearbox Sump Drain Plug
Non-Magnetic
2 required
365 GT4 BB up to car 17535: 1 required
Replaces: 95259, 100826, 522659
(512: All) |
24616460 |
£24.87 |
|
 |
Gearbox Sump Drain Plug
Magnetic
2 required
365 GT4 BB up to car 17535: 1 required
Supersedes: 95259, 522659
(512: All) |
100826 |
£59.50 |
|
 |
Gearbox Sump Drain Plug
Magnetic
1 required
Supersedes: 95259, 522659
(512: All) |
100826A
|
£74.80 |
|
 |
Drop Gears Oil Breather Cap
1 required
(512: BB, BBi) |
13411990 |
£2.89 |
|
 |
Drain Plug
Currently on Manufacturer Back Order
(512: All) |
10300740
|
£11.15 |
|
 |
Oil Pick Up Filter Clip
(512: All)
|
103944 |
£12.95 |
|
| |
|
|
|
|
| |
Head studs |
|
|
|
 |
Cylinder Head Stud
(512: BB, BBi) |
102691 |
£31.39 |
|
| |
|
|
|
|
| |
Bearings |
|
|
|
 |
Timing Belt Drive Pulley Inner Bearing
Supersedes: 114766
(512: BB, BBi) |
104918 |
£4.98 |
|
| |
|
|
|
|
 |
Timing Belt Drive Pulley Outer Bearing
Unsealed bearing
Supersedes: 101299
(512: BB) |
104917 |
£7.67 |
|
 |
Timing Belt Drive Pulley Outer Bearing
Sealed bearing
Supersedes: 175260
(512: BBi) |
112019 |
£19.84 |
|
| |
|
|
|
|
 |
Timing Belt Drive Pulley Oil Seal
Use with unsealed bearing #104917
(512: BB) |
104916 |
£9.25 |
|
 |
Timing Belt Drive Pulley Oil Seal
Use with sealed bearing #112019
Supersedes: 117276
(512: BBi) |
112020 |
£7.95 |
|
| |
|
|
|
|
 |
Timing Belt Drive Pulley Clip
Supersedes: 11059975
(512: BB, BBi) |
11059976 |
£0.77 |
|
| |
|
|
|
|
|
Crankshaft Rear Spigot Bearing
(512: All) |
103877 |
£16.95 |
|
| |
|
|
|
|
| |
BIG END BEARINGS |
|
|
|
 |
Standard Big End Bearings, full engine set
Set of 12 pairs
Tri-metal bearings, manufactured to Vandervell VP2 Spec
Supersedes (individual half shells): 100150, 106183, 14447
(512: All) |
100150-12 |
£265.00 |
|
|
Big End Bearings (1st Oversize), full engine set
Set of 12 pairs
First oversize (10 thou)
Tri-metal bearings, manufactured to Vandervell VP2 Spec
Supersedes (individual half shells): 100151, 106184
(512: All) |
100151
-12-10 |
£299.42 |
|
| |
|
|
|
|
| |
Main bearings |
|
|
|
 |
Main Bearings (Standard), full engine set
Standard size
Tri-metal bearings, manufactured to Vandervell VP2 Spec
Includes (individual half shells): 100118 (9100035), 100122 (9100602), 100134 (9100618), 100138 (9100037), 100142 (9100603)
(512: All) |
F1216010 |
£469.50 |
|
 |
Main Bearings (1st Oversize), full engine set
1st Oversize, 10 thou
(512: All) |
108604 |
£274.63 |
|
| |
|
|
|
|
| |
THRUST WASHERS |
|
|
|
|
Thrust Bearings (Standard), full engine set
Set of 2 pairs
Standard size
Supersedes: 10345, 4150813
(512: All)
|
100146-2 |
£20.95 |
|
 |
Thrust Bearings (Oversize), full engine set
Set of 2 pairs
Oversize (5 thou)
Supersedes: 10345, 4150813
(512: All)
|
100146-2
-5 |
£24.95 |
|
| |
|
|
|
|
| |
bolt |
|
|
|
|
Crankshaft Pulley Bolt
(512: All) |
138793
|
£62.00 |
|
|
Crankshaft Pulley Washer
(512: All) |
138792
|
£3.57 |
|
| |
|
|
|
|
| |
MIsc Nuts, Bolts & Washers |
|
|
|
 |
Screw
Supersedes: 10977611, 10977621
M5 x 12mm
|
10977624 |
£0.05 |
|
|
M8 Nut, 14mm Hex, each
|
H01-01917
|
£3.85 |
|
|
M6 Nut Flanged Lock Nut, each
|
FLN-M6
|
£1.50 |
|
|
M8 Nut Flanged Lock Nut, each
|
FLN-M8
|
£2.10 |
|
 |
Head Washer
(512: BB, BBi) |
30816240 |
£1.61 |
|
|
15mm Wave Washer, Pack of 20
|
H01-01959
|
£14.00 |
|
|
12mm Wave Washer, Pack of 20
|
H01-01956
|
£18.00 |
|
|
10mm Wave Washer, Pack of 20
|
H01-01957
|
£16.00 |
|
|
8mm Wave Washer, Pack of 20
|
H01-01958
|
£14.00 |
|
|
6mm Wave Washer, each
|
12601274
|
£0.45 |
|
|
8mm Wave Washer, each
|
12601374
|
£0.02 |
|
|
10mm Spring Washer, each
|
106853
|
£0.03 |
|
|
Crankcase Spring Washer
(512: BB, BBi)
|
10517171
|
£0.35 |
|
|
Head Gasket Washer
(512: BB, BBi)
|
100100 |
£3.48 |
|
|
Crankcase Dowel
(512: All)
|
102704
|
£2.22 |
|
|
Crankcase Washer
(512: All)
|
102694
|
£1.02 |
|
 |
Crankcase Nut
(512: All)
|
102693 |
£9.87 |
|
 |
Crankcase Stud
(512: All) |
13544024 |
£0.54 |
|
 |
Crankcase Stud
(512: BB) |
13517321 |
£14.35 |
|
 |
Stud
Supersedes: 13543521
(512: BB, BBi)
|
13543524 |
£3.99 |
|
|
M8 Flange Nut, Serrated, each
|
FER16010
|
£0.97 |
|
 |
M6 Nut, each
Supersedes: 15896214
|
15896211 |
£0.23 |
|
 |
M8 Domed Nut, each |
101240 |
£2.25 |
|
 |
M14 Spring Washer
|
M14WASH |
£0.27 |
|
 |
Washer
|
10519424 |
£0.02 |
|
 |
Washer
Supersedes: 12648301, 61148700, 12643721, 12643704, 109684, 12643711, 14499324, 14499301
|
12643724 |
£0.05 |
|
|
Washer
20mm OD x 8.45mm ID x 2mm Thickness
|
12646701 |
£0.07 |
|
|
Crankcase Dowel
3mm ID
(512: BB, BBi)
|
100097
|
£9.14 |
|
| |
|
|
|
|
| |
filler caps |
|
|
|
 |
Fuel Filler Cap
Brushed aluminium
Screw thread
Supersedes: 142790, 175708 |
180320 |
£48.95 |
|
 |
Oil / Fuel Filler Cap Seal
|
FER09002 |
£9.95 |
|
| |
|
|
|
|
| |
dipstick |
|
|
|
 |
Shaped Hose
(512: BB, BBi)
|
104873 |
£30.09 |
|
| |
|
|
|
|
| |
con rod |
|
|
|
 |
Arrow Con Rods, set of 12
Manufactured from high-grade EN24 X Condition steel, these con rods have been shot peened to increase fatigue strength and durability, whilst being 100% magnaflux crack detected prior to final inspection.
(512: BB, BBi)
|
109738-12A |
£3675.12 |
|
 |
Con Rod Bolt
(512: BB, BBi)
|
100156 |
£13.44 |
|
|
Big End Nut
Forged
Supersedes: 14795, 104011
(512: BB, BBi) |
30816245 |
£8.72 |
|
| |
|
|
|
|
| |
flywheels |
|
|
|
 |
Flywheel with Ring Gear
Aftermarket
(512: BB) |
109558/A |
£1498.65 |
|
 |
Flywheel with Ring Gear
Aftermarket
(512: BBi) |
118367/A |
£1589.56 |
|
 |
Flywheel Bolt
(512: All)
|
103875 |
£0.83 |
|
 |
Flywheel Safety Plate
Precision ground, hardened and tempered as per OE specification
(512: All)
|
108662 |
£14.00 |
 |
 |
Flywheel Dowel
(512: All)
|
100185 |
£9.63 |
|
| |
|
|
|
|
| |
woodruff key |
|
|
|
 |
Crankshaft Woodruff Key
(512: BB, BBi)
|
10206020 |
£1.52 |
|
 |
Timing Belt Drive Pulley Woodruff Key
(512: BB, BBi) |
10206320 |
£1.09 |
|
| |
|
|
|
|
| |
rings & CIRCLIPS |
|
|
|
|
Piston Circlips
Set of 16
#100174
(512: All) |
30816070 |
£29.95 |
|
| |
|
|
|
|
| |
crankshaft oilway plugs |
|
|
|
|
Threaded Oilway Plug
Supersedes: 12326150
(512: All) |
14326150 |
£1.75 |
|
| |
|
|
|
|
| |
Oil Tank |
|
|
|
|
Union
(512: BB, BBi)
|
105195 |
£34.50 |
|
|
Oil Pipe Washer
(512: BB, BBi) |
10265060
|
£0.84 |
|
 |
Spacer
(512: All) |
107980 |
£5.09 |
|
 |
Tube
140mm Long
Supersedes: 116785
(512: BB) |
110886 |
£7.24 |
|
|
Oil Tank Rubber Mount
#102947
(512: BB, BBi) |
30810070 |
£8.69 |
|
| |
|
|
|
|
| |
oil pickup |
|
|
|
 |
Oil Pick Up Pipe Filter
(512: All) |
100332 |
£16.99 |
|
| |
|
|
|
|
| |
Engine mounts |
|
|
|
|
Engine Mount Nut
(512: All)
|
12164721 |
£0.45 |
|
| |
|
|
|
|
| |
High Quality Yellow Nyloc nuts |
|
|
|
 |
7mm Spanner Size Nut
M4 x 1mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M4NUT |
£0.23 |
|
 |
10mm Spanner Size Nut, Standard
M6 x 1mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M6NUTSTD |
£0.24 |
|
 |
10mm Spanner Size Nut, Tall
M6 x 1mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M6NUTTALL |
£0.28 |
|
 |
13mm Spanner Size Nut, Standard
M8 x 1.25mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M8NUTSTD |
£0.24 |
|
 |
13mm Spanner Size Nut, Tall
M8 x 1.25mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M8NUTTALL |
£0.29 |
|
 |
17mm Spanner Size Nut
M10 x 1.25mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M10NUT |
£0.34 |
|
 |
19mm Spanner Size Nut
M12 x 1.25mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M12NUT |
£0.38 |
|
 |
22mm Spanner Size Nut
M14 x 1.5mm nyloc nut
High quality yellow nyloc nut, made to replace original OEM parts fitted in period.
|
M14NUT |
£0.42 |
|
| |
|
|
|
|
| |
|
|
|
|
